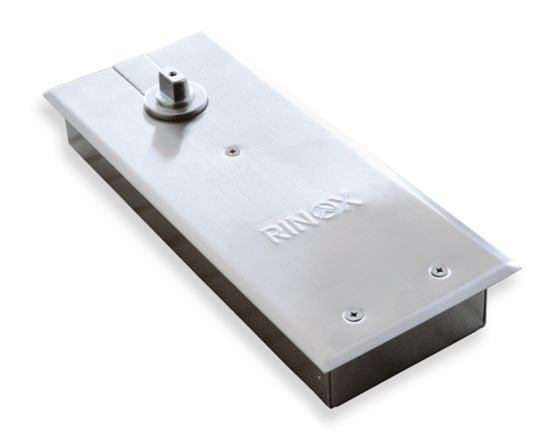

RFS-101-SATIN

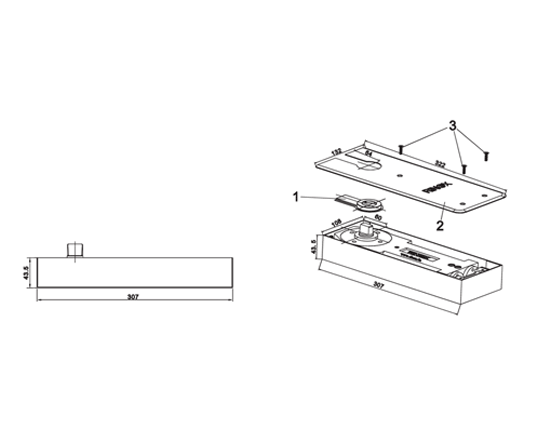

RFS-101-SATIN.drawing
RFS-101-SATIN RFS-101-SATIN.drawing

Features :



• German design-high quality,precision machined mechanism.

• Internal mechanism components utilizing heat treated high grade alloy steels & ball bearing for optimum efficiency.

• High grade cast iron body housed within a galvanized steel box.

• Cover plate made of certified stainless steel grade 304 for superior rust prevention.

• German standard machine oil and sealed rings for longer life.

• Hinge mechanism totally immersed in high grade hydroulic fluid.

• Built in pressure relief valve protects the closer form rough use.

• Designed for smooth functioning within wide temperature ranges.

• Ideal for use in any kind of door.

• Double cylinder cam action floor hinge.

• Cam action floor Hinge with closing force EN 2.

• Maximum opening angle 116° both sides.

• Maximum door weight 80 Kg.

• Maximum door width 950 mm.
