Features :
• Fully hydraulically controlled German design mechanism.
• Innovative design allows users to choose the force required for opening the door.
• Has two range closing mechanisms in a single sweep.
• Independent speed and force control for both closing ranges.
• Fire tested for 2 hours as per European Standards EN 1154.
• Certified by United Kingdom Accreditation service (UKAS).
• Tested for usage exceeding 3,00,000 Cycles.
• Superior quality silver finish.
Features:

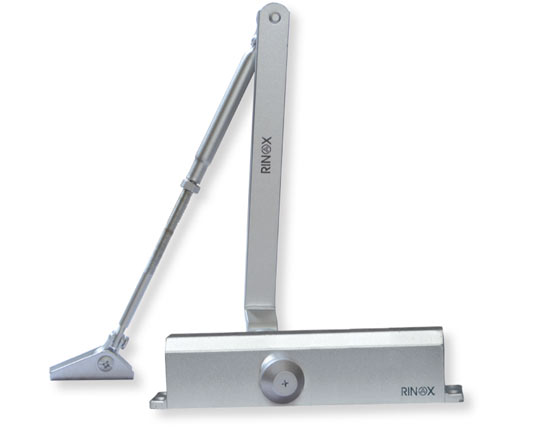

| Product | ODC-202 |
|---|---|
| Technology | Rack & Pinion |
| Closing force (EN value) | EN: 2-3 |
| Maximum door width | 900mm |
| Maximum door weight | 60Kg |
| Design | Reversible non-handed design |
| Power transmission | Standard arm |
| Closing speed range | 180-15 degrees |
| Latching speed range | 15-0 degrees |
| Latching action | Adjustable by shoe arm reversing |

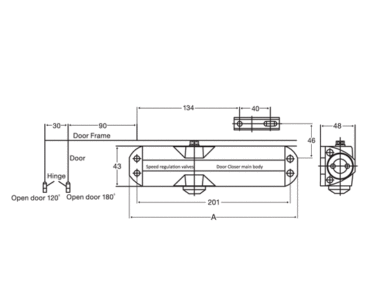

| Length | 182 mm |
| Width | 41 mm |
| Height | 63 mm |
| Installation possibilities | Pull side door leaf |
| Cycle tested | 5 Lac |
