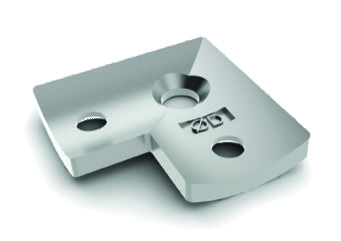

L-shape Saddle 90°

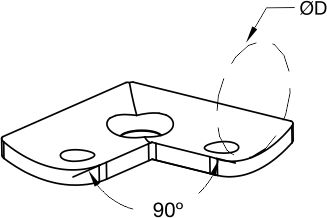

L-shape Saddle 90°_
L-shape Saddle 90° L-shape Saddle 90°_

Part No. Ø D (For Tube)
UA.001.23.04.M 42.4 mm
UA.001.24.04.M 48.3 mm
UA.001.26.04.M 38.1 mm / 1.5 inch
UA.001.27.04.M 50.8 mm / 2.0 inch








Part No. Ø D (For Tube)
UA.001.23.04.S 42.4 mm
UA.001.24.04.S 48.3 mm
UA.001.26.04.S 38.1 mm / 1.5 inch
UA.001.27.04.S 50.8 mm / 2.0 inch








Part No. Ø D (For Tube)
UA.001.23.16.S 42.4 mm
UA.001.24.16.S 48.3 mm
UA.001.26.16.S 38.1 mm / 1.5 inch
UA.001.27.16.S 50.8 mm / 2.0 inch








Part No. Ø D (For Tube.)
UA.001.23.16.M 42.4 mm
UA.001.24.16.M 48.3 mm
UA.001.26.16.M 38.1 mm / 1.5 inch
UA.001.27.16.M 50.8 mm / 2.0 inch
