Specifications :
• Opening degree: 105
• Diameter of hinge cup: 35 mm
• Height of hinge cup: 11.3 mm
• Range for door thickness: 14-22 mm
• Main material: cold-rolled steel nickel plated

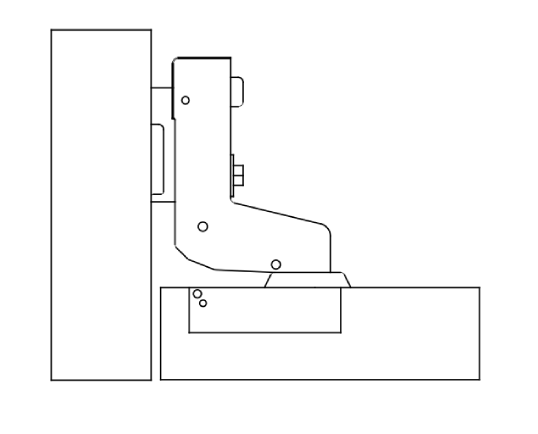

• H= Height of mounting plate
• D= Require door overlay
• K= Drilling distance from the edge of the door to the edge of the hole.
• A= Gap between door and sideboards
| K | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|
| D | 1.5 | 0.5 | -0.5 | -1.5 | -2.5 |
