8 Things About Why Modular Railings is better than Welded Railings You May Not Have Known

There are two kinds of railing systems that you can principally choose between when you opt for using stainless steel railings.

Welded Railings

The first type is a traditional welded railing in which the parts of the railing are welded together. In this model, you take pipes and different fittings like elbows, bottom flanges, etc. and you weld them at the site after cutting them to the required lengths. You could even simply bend the pipes and plates to form the joints and then weld the pieces of metal together without using any prefabricated parts. Welded railings are finished in the factory and entire sections are transported to the site. This type of railing usually does not require any pre-fabrication in the factory. This is the cheapest form of stainless steel railing but also results in the least desirable final finish.

Modular Railings

The other type of railing that can be used is a modular railing. In modular railings all the fittings (joints) are prefabricated, the pipes are cut to size and the fittings and the pipes are put together using a fastening system or an industrial metal-to-metal glue. There is no welding done at the site for this type of railing. The joints are flexible allowing any adjustment required for on-site construction imperfections.

Advantages and Disadvantages between Welded and Modular Railings

The main advantage of welded railing is its initial cost. Usually, it is the cheapest form of stainless steel railing you can opt for – especially if you are welding the railing at the site.

However, there are very clear disadvantages for welded railings compared to modular railings and a choice must be made carefully keeping in mind all considerations.

1. Visual Look

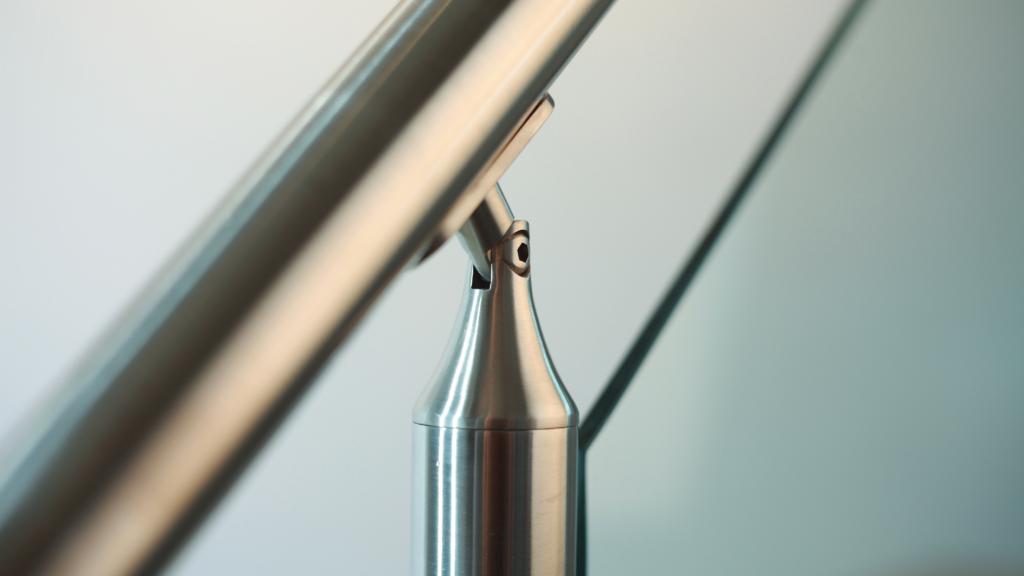

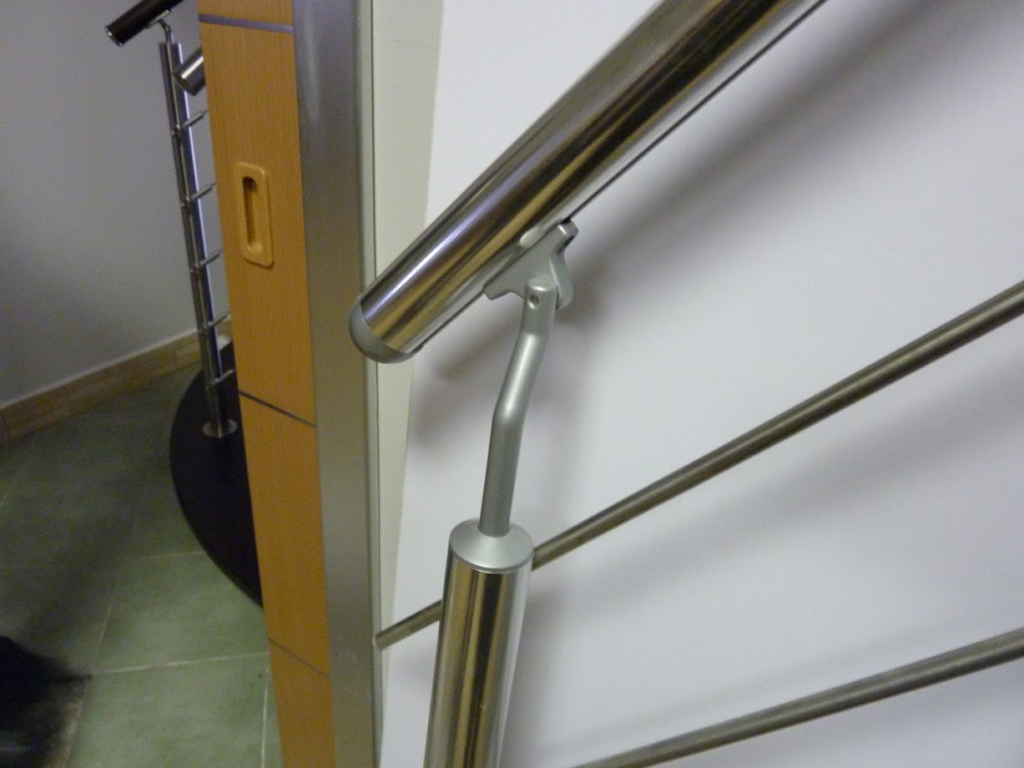

Modular Railings

They look clean and professional because the parts lock and connect with each other in a precise and accurate manner with no finishing or touching required.​

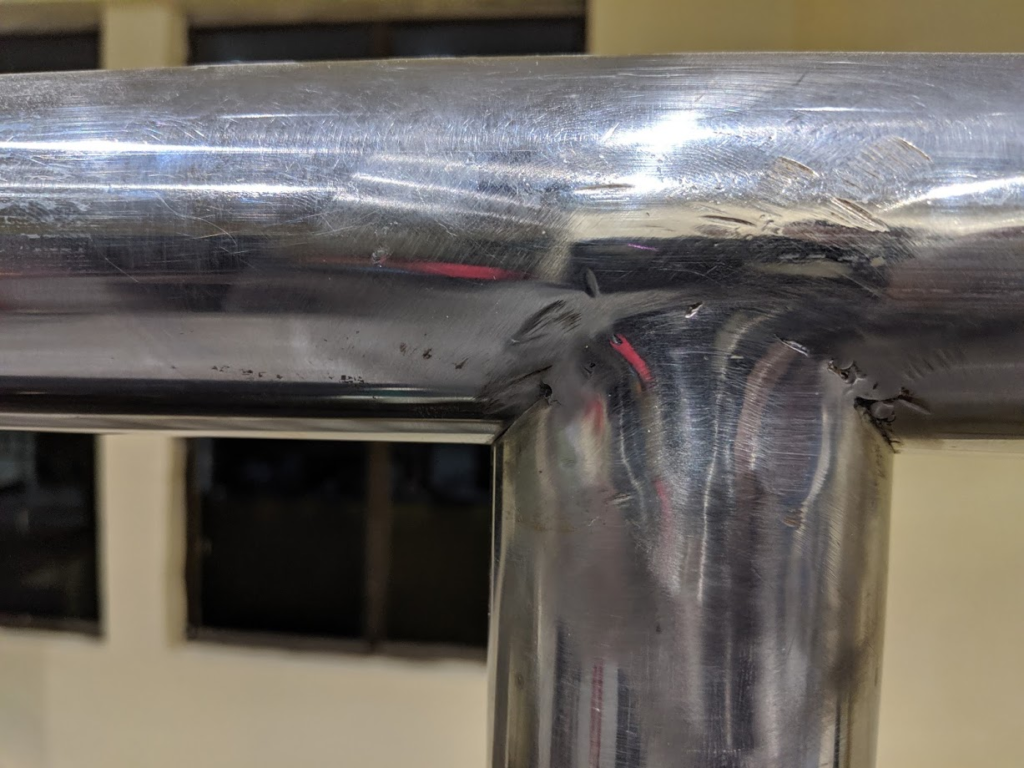

Welded Railings

The joints of welded railings look ugly because there is no good way to finish a welded stainless steel joint at the site. There is no coating or paint to hide the rework and re-polish which will be inevitable in case of on-site welding. There is one very expensive way to improve the joints – that is to finish the entire welding and fabricate the railing section in the factory itself.

2. Requirement of specialized labour

Mo

Modular Railings

No special manufacturing expertise is required. The manufacturing process is completed within the factory itself using manual, robotic and automatic machinery.

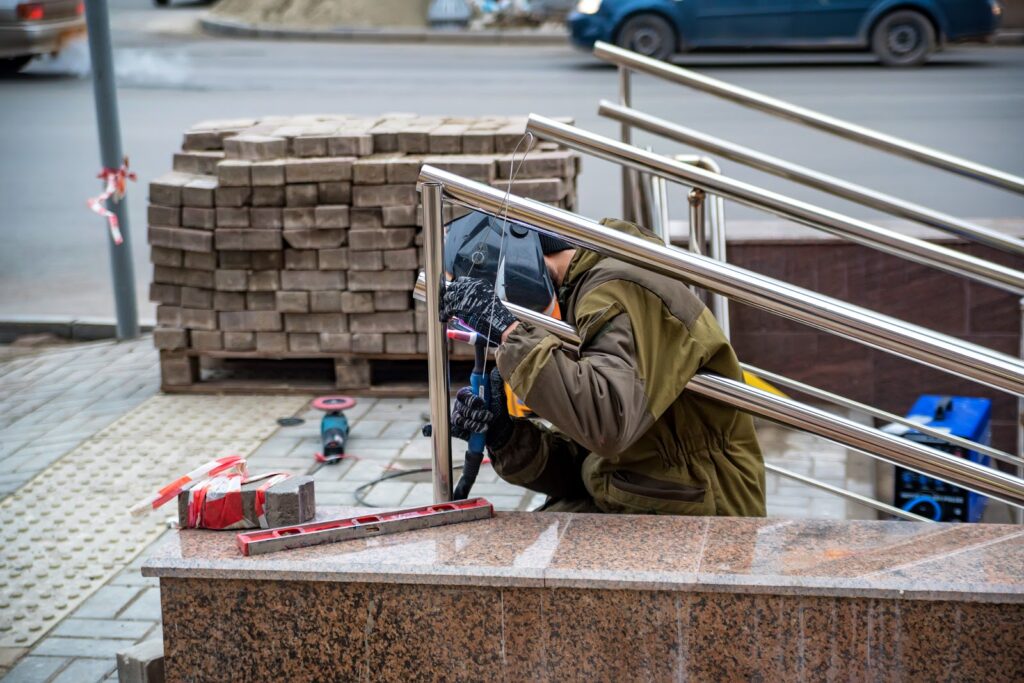

Welded Railings​

Welding stainless steel is a specialized skill requiring experience and expertise. Unlike other materials, there is no paint or coating which is done on the surface of the welded joint to cover the imperfections. Therefore the welding has to be done very carefully and with great expertise and after welding it has to be cleaned on all the sides and also the polish has to be matched which itself is an extremely tedious job. This is a time taking, expensive process and requires special workers who may not be easily available. Moreover welding is a dangerous and hazardous process so it is not a desirable vocation for most workers.

3. Susceptibility to Rust

Modular Railings

There is no welding done at the site so additional opportunities for rust to manifest itself into the railing are NOT created.

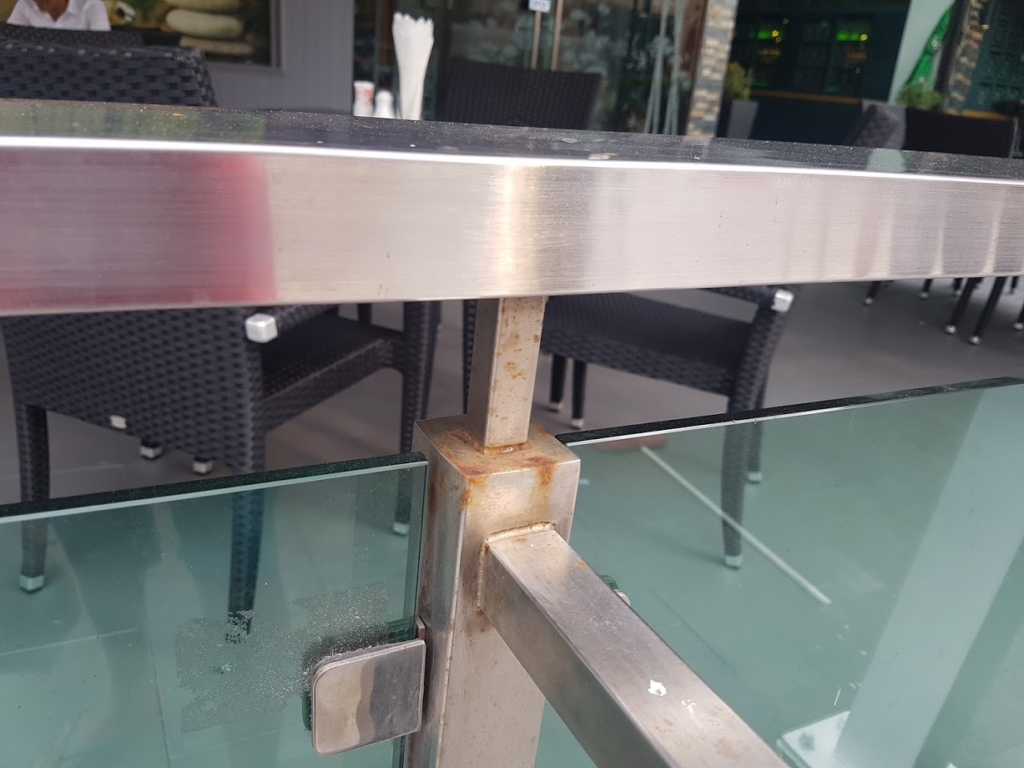

Welded Railings

Welding is highly prone to rust at the joints. When you weld stainless steel essentially you are melting the raw material at high temperature. Once you heat a metal at very high temperature and expose it to the air, it is open to contamination which means that the chances of rust happening at the welded joints is extremely high.

Read More

Benefits of Stainless Steel Railings

The choice of material for discerning architects in search of a unique railing system, stainless steel helps produce a significant design impact. Given the material’s clean, beautiful looks, and resistance to rust, it’s easy to understand the reasons which make it so popular. In addition, it complements other materials when used in combination with glass or wood to create a distinctively modern feel.

The design options with stainless steel are very wide. The material is bright and clean, available in various shapes, finishes, and can be designed to suit a wide range of applications – from industrial, commercial to residential.

Extreme Durability

Railings made of stainless steel can stand many years of use and abuse, as well as exposure to extreme weather conditions. Any commercial or residential property’s exteriors should be designed to endure the elements. Stainless steel railings will hold their ground firmly because of their strength and corrosion resistance properties.

Cost Efficiency

When customizing metal railings, the first thing that often comes to mind is the prohibitive cost, as well as the associated repair and maintenance work. This is a clear misconception! Customizing your railing is affordable. While wood railings may be a less expensive option to customize, they would be more costly in the long term – if you factor in the maintenance cost. Stainless steel railings are virtually zero maintenance with high strength and very long life.

Aesthetic Appeal

A lot of commercial and residential structures use railings made of stainless steel to enhance the beauty and strength of their buildings. Stainless steel provides a sleek and modern look, particularly for structures with contemporary design. The good thing about stainless steel railings is that you can choose a particular design from a wide variety of available options, based on your preferences. You can even have the railings customized according to your specific requirements. In addition, the material is durable and long-lasting. It is the most preferred metal for construction in general, and railings in particular.
