Tube Support with Fixed Round Saddle

January 20, 2016
No Comments

e3bd4c86-a412-464a-bd91-23adf7e53b2d

5b2f09c2-0424-4950-95c1-a25d22f1c799

e3bd4c86-a412-464a-bd91-23adf7e53b2d

5b2f09c2-0424-4950-95c1-a25d22f1c799

Part No.	Ø D (For Tube)	T (Thickness)	Ø D (For Tube)
TS.002.02.04.M	33.7mm	2.0mm	33.7mm
TS.003.03.04.M	42.4mm	2.0mm	42.4mm
TS.013.03.04.M	42.4mm	2.6mm	42.4mm
TS.004.04.04.M	48.3mm	2.0mm	48.3mm
TS.014.03.04.M	48.3mm	2.6mm	42.4mm
TS.014.04.04.M	48.3mm	2.6mm	48.3mm
TS.106.06.04.M	38.1mm / 1.5 inch	1.5mm	38.1mm / 1.5 inch
TS.106.07.04.M	38.1mm / 1.5 inch	1.5mm	50.8mm / 2.0 inch
TS.107.06.04.M	50.8mm / 2.0 inch	1.5mm	38.1mm / 1.5 inch
TS.107.07.04.M	50.8mm / 2.0 inch	1.5mm	50.8mm / 2.0 inch
TS.007.06.04.M	50.8mm / 2.0 inch	2.0mm	38.1mm / 1.5 inch
TS.007.07.04.M	50.8mm / 2.0 inch	2.0mm	50.8mm / 2.0 inch

Part No.	Ø D (For Tube)	T (Thickness)	Ø D (For Tube)
TS.002.02.04.S	33.7mm	2.0mm	33.7mm
TS.003.03.04.S	42.4mm	2.0mm	42.4mm
TS.013.03.04.S	42.4mm	2.6mm	42.4m
TS.004.04.04.S	48.3mm	2.0mm	48.3mm
TS.014.03.04.S	48.3mm	2.6mm	42.4mm
TS.014.04.04.S	48.mm	2.6mm	48.3mm
TS.106.06.04.S	38.1mm / 1.5 inch	1.5mm	38.1mm / 1.5 inch
TS.106.07.04.S	38.1mm / 1.5 inch	1.5mm	50.8mm / 2.0 inch
TS.107.06.04.S	50.8mm / 2.0 inch	1.5mm	38.1mm / 1.5 inch
TS.107.07.04.S	50.8mm / 2.0 inch	1.5mm	50.8mm / 2.0 inch
TS.007.06.04.S	50.8mm / 2.0 inch	2.0mm	38.1mm / 1.5 inch
TS.007.07.04.S	50.8mm / 2.0 inch	2.0mm	50.8mm / 2.0 inch

Part No.	Ø D (For Tube)	T (Thickness)	Ø D (For Tube)
TS.002.02.16.S	33.7mm	2.0mm	33.7mm
TS.003.03.16.S	42.4mm	2.0mm	42.4mm
TS.003.03.16.S	42.4mm	2.6mm	42.4mm
TS.013.04.16.S	48.3mm	2.0mm	48.3mm
TS.004.03.16.S	48.3mm	2.6mm	42.4mm
TS.014.04.16.S	48.3mm	2.6mm	48.3mm
TS.106.06.16.S	38.1mm / 1.5 inch	1.5mm	38.1mm / 1.5 inch
TS.106.07.16.S	38.1mm / 1.5 inch	1.5mm	50.8mm / 2.0 inch
TS.107.06.16.S	50.8mm / 2.0 inch	1.5mm	38.1mm / 1.5 inch
TS.107.07.16.S	50.8mm / 2.0 inch	1.5mm	50.8mm / 2.0 inch
TS.007.06.16.S	50.8mm / 2.0 inch	2.0mm	38.1mm / 1.5 inch
TS.007.07.16.S	50.8mm / 2.0 inch	2.0mm	50.8mm / 2.0 inch

Part No.	Ø D (For Tube)	T (THICKNESS)	Ø D (For Tube)
TS.002.02.16.M	33.7mm	2.0mm	33.7mm
TS.003.03.16.M	42.4mm	2.0mm	42.4mm
TS.013.03.16.M	42.4mm	2.6mm	42.4mm
TS.004.04.16.M	48.3mm	2.0mm	48.3mm
TS.014.03.16.M	48.3mm	2.6mm	42.4mm
TS.014.04.16.M	48.3mm	2.6mm	48.3mm
TS.106.06.16.M	38.1mm / 1.5 inch	1.5mm	38.1mm / 1.5 inch
TS.106.07.16.M	38.1mm / 1.5 inch	1.5mm	50.8mm / 2.0 inch
TS.107.06.16.M	50.8mm / 2.0 inch	1.5mm	38.1mm / 1.5 inch
TS.107.07.16.M	50.8mm / 2.0 inch	1.5mm	50.8mm / 2.0 inch
TS.007.06.16.M	50.8mm / 2.0 inch	2.0mm	38.1mm / 1.5 inch
TS.007.07.16.M	50.8mm / 2.0 inch	2.0mm	50.8mm / 2.0 inch

Read More

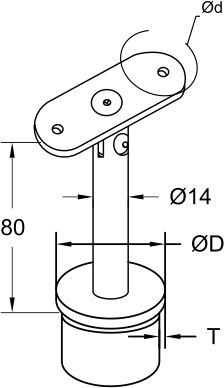

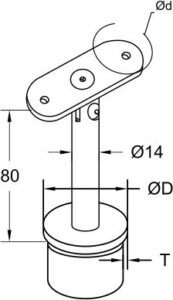

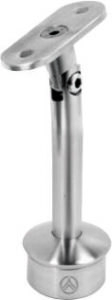

Tube Support with Swivel & Flat Saddle

January 20, 2016
No Comments

Tube Support with Swivel & Flat Saddle

Tube Support with Swivel & Flat Saddle_

Tube Support with Swivel & Flat Saddle

Tube Support with Swivel & Flat Saddle_

Part No.	Ø D (For Tube)	T (Thickness)	Ø D (For Tube)
TS.002.01.04.M	33.7mm	2.0mm	Flat
TS.003.01.04.M	42.4mm	2.0mm	Flat
TS.013.01.04.M	42.4mm	2.6mm	Flat
TS.004.01.04.M	48.3mm	2.0mm	Flat
TS.014.01.04.M	48.3mm	2.6mm	Flat
TS.106.01.04.M	38.1mm / 1.5 inch	1.5mm	Flat
TS.107.01.04.M	50.8mm / 2.0 inch	1.5mm	Flat
TS.007.01.04.M	50.8mm / 2.0 inch	2.0mm	Flat

Part No.	Ø D (For Tube)	H (Height)	Ø D (For Tube)
TS.002.01.04.S	33.7mm	2.0mm	Flat
TS.003.01.04.S	42.4mm	2.0mm	Flat
TS.013.01.04.S	42.4mm	2.6mm	Flat
TS.004.01.04.S	48.3mm	2.0mm	Flat
TS.014.01.04.S	48.3mm	2.6mm	Flat
TS.106.01.04.S	38.1mm / 1.5 inch	1.5mm	Flat
TS.107.01.04.S	50.8mm / 2.0 inch	1.5mm	Flat
TS.007.01.04.S	50.8mm / 2.0 inch	2.0mm	Flat

Part No.	Ø D (For Tube)	T (THICKNESS)	Ø D (For Tube)
TS.002.01.16.S	33.7mm	2.0mm	Flat
TS.003.01.16.S	42.4mm	2.0mm	Flat
TS.013.01.16.S	42.4mm	2.6mm	Flat
TS.004.01.16.S	48.3mm	2.0mm	Flat
TS.014.01.16.S	48.3mm	2.6mm	Flat
TS.106.01.16.S	38.1mm / 1.5 inch	1.5mm	Flat
TS.107.01.16.S	50.8mm / 2.0 inch	1.5mm	Flat
TS.007.01.16.S	50.8mm / 2.0 inch	2.0mm	Flat

Part No.	Ø D (For Tube)	T (THICKNESS)	Ø D (For Tube)
TS.002.01.16.M	33.7mm	2.0mm	Flat
TS.003.01.16.M	42.4mm	2.0mm	Flat
TS.013.01.16.M	42.4mm	2.6mm	Flat
TS.004.01.16.M	48.3mm	2.0mm	Flat
TS.014.01.16.M	48.3mm	2.6mm	Flat
TS.106.01.16.M	38.1mm / 1.5 inch	1.5mm	Flat
TS.107.01.16.M	50.8mm / 2.0 inch	1.5mm	Flat
TS.007.01.16.M	50.8mm / 2.0 inch	2.0mm	Flat

Read More
