3 Axis

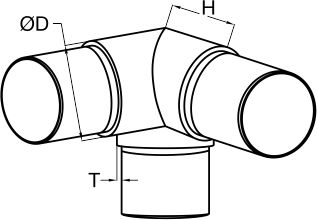

3 Axis_
3 Axis 3 Axis_

Part No.  Ø D ( For Tube) T (Thickness) H (Height)
EB.601.01.04.M 33.7mm 2.0mm 40mm
EB.602.01.04.M 42.4mm 2.0mm 50mm
EB.602.02.04.M 42.4mm 2.6mm 50mm
EB.603.01.04.M 48.3mm 2.0mm 60mm
EB.603.02.04.M 48.3mm 2.6mm 60mm
EB.604.03.04.M 38.1mm / 1.5 inch 1.5mm 45mm
EB.605..03.04.M 50.8mm / 2.0 inch 1.5mm 70mm
EB.605..01.04.M 50.8mm / 2.0 inch 2.0mm 70mm




Part No.  Ø D ( For Tube) T (Thickness) H (Height)
EB.601.01.04.S 33.7mm 2.0mm 40mm
EB.602.01.04.S 42.4mm 2.0mm 50mm
EB.602.02.04.S 42.4mm 2.6mm 50mm
EB.603.01.04.S 48.3mm 2.0mm 60mm
EB.603.02.04.S 48.3mm 2.6mm 60mm
EB.604.03.04.S 38.1mm / 1.5 inch 1.5mm 45mm
EB.605.03.04.S 50.8mm / 2.0 inch 1.5mm 70mm
EB.605.01.04.S 50.8mm / 2.0 inch 2.0mm 70mm




Part No.  Ø D ( For Tube) T (Thickness) H (Height)
EB.601.01.16.S 33.7mm 2.0mm 40mm
EB.602.01.16.S 42.4mm 2.0mm 50mm
EB.602.02.16.S 42.4mm 2.6mm 50mm
EB.603.01.16.S 48.3mm 2.0mm 60mm
EB.603.02.16.S 48.3mm 2.6mm 60mm
EB.604.03.16.S 38.1mm / 1.5 inch 1.5mm 45mm
EB.605.03.16.S 50.8mm / 2.0 inch 1.5mm 70mm
EB.605.01.16.S 50.8mm / 2.0 inch 2.0mm 70mm




Part No.  Ø D ( For Tube) T (Thickness) H (Height)
EB.601.01.16.M 33.7mm 2.0mm 40mm
EB.602.01.16.M 42.4mm 2.0mm 50mm
EB.602.02.16.M 42.4mm 2.6mm 50mm
EB.603.01.16.M 48.3mm 2.0mm 60mm
EB.603.02.16.M 48.3mm 2.6mm 60mm
EB.604.03.16.M 38.1mm / 1.5 inch 1.5mm 45mm
EB.605.03.16.M 50.8mm / 2.0 inch 1.5mm 70mm
EB.605.01.16.M 50.8mm / 2.0 inch 2.0mm 70mm
